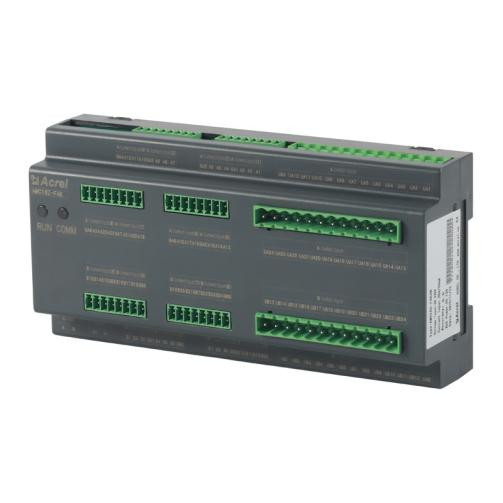

AMC16Z-ZA AC Multi Channel Energy Meter

Brand Name : Acrel

Model Number : AMC16Z-ZA

Certification : CE

Place of Origin : China

MOQ : 1 Pieces

Payment Terms : T/T

Supply Ability : 5000pcs/day

Delivery Time : 2-3 days

Packaging Details : cardboard box

Measurement : U, I, P, Q, S, PF, kWh, kvarh

Frequency : 45~65Hz

Accuracy : kWh Class 0.5

Installation : DIN 35 mm

communication : RS485 modus rtu

Contact Now


AMC16Z series multi channel din rail ac power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.

Technical parameter

Technical parameterAMC16Z-ZA
Measured parameterVoltage, current, frequency, active power, reactive power, power factor,
active power, reactive power

Zero ground voltage, neutral line current, total harmonic content (THD),
2-63 harmonics, current and voltage unbalance degree, current K
coefficient (KF), voltage crest coefficient (CF),telephone waveform
factor (

), peak voltage, voltage and current sequence quantity,
environmental temperature and humidity.

Busbar voltageRated220VAC
Instant voltage 2times/second
Current incoming circuitRatedTwice 5A
OverloadDuration 1.2 times, instantaneous 10 times/second
Temp &humidityTemp range-40℃~+99℃
humidity range20%~90%
Input frequency
Measurement precisionInlet wireVoltage/current level 0.2, active power/electric energy level 0.5, reactive
power/electric energy level 1
Auxiliary power supplyTake electric signal(≤15W)
EnvironmentTempWorking:-15℃~55℃ Storage:-25℃~70℃
HumidityRelative humidity ≤93%
Switch output2-way 3A 250VAC/3A 30VDC
Switch input6-way dry contact
Installation methodDIN35mm Guide rail or bottom plate mounting
