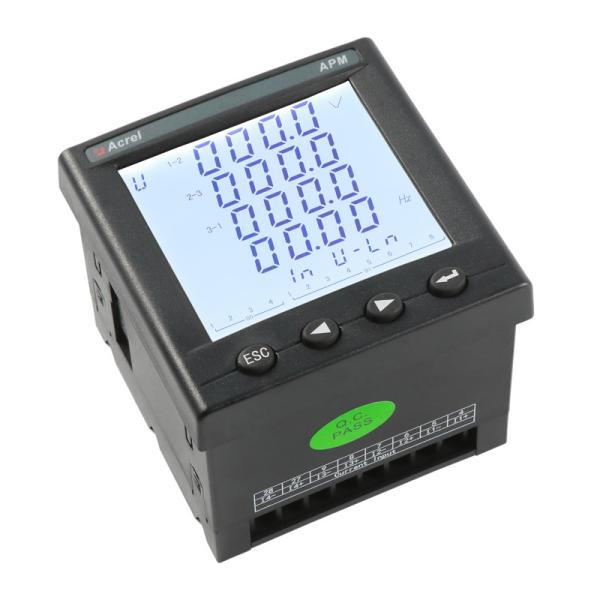

969665mm 50Hz Programmable Power Meter Multifunction APM810

Name: 969665mm 50Hz Programmable Power Meter Multifunction APM810
Brand: Acrel
Price: 385.00 USD

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : APM810

MOQ : 1 Piece

Price : $385.00 / Piece

Display Type : Analog and Digital

Phase : Three Phase

Measuring Energy Range : AC/DC 85V~265V or AC/DC 115~415V

Accuracy Class : 0.5s

Output Voltage : AC/DC 85V~265V or AC/DC 115~415V

Operating Temperature : -20-65℃

Dimensions : 96*96*65mm

Display : LCD Display

Communication : RS485 Port MODBUS-RTU Protocol

Certificate : CE ISO9001

Installation : Panel Mounted

Frequency : Range:45-65Hz

Consumption : ≤15VA

Function : Multi Rate (time-of -use) Energy Measurement

Auxiliary power supply : AC/DC 85V~265V or AC/DC 115~415V

Accuracy : Voltage,current and power:class 0.5s

Relay : 3A/AC250V, 3A/DC30V

Selling Units : Single item

Single package size : 9.6X9.6X9.2 cm

Single gross weight : 0.800 kg

Package Type : It is packed in a crash bag and then put into a cardboard box.

Contact Now

96*96*65mm 50Hz Programmable Power Meter Multifunction APM810

APM810 Multifunction Meter

● True RMS Measurements

● THD with 63rd Harmonics

● K-Factor and Crest Factor

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

Characteristic

Communication

Standard: RS485(Modbus-RTU)

Optional: Profibus(Profibus-DP), Ethernet(Modbus-TCP, HTTP, DHCP)

Display

LCD display U,I,P,Q,PF,kWh and other energy consumption,power measurement,harmonic content

Rated U and I

Voltage:AC 100V,110V,400V,690V；Current:AC 1A, 5A, support 2 mm2 line access;

Technical parameters

Connection			3 phase 3 wire,3 phase 4 wire
Frequency			50Hz
Input voltage	Rated current	AC 100V,110V,400V,690V
		Overload	1.2 times rated value(continuous)；2 times rated value(1 second)
		Consumption	＜0.5VA
Input current	Rated current	AC 1A,5A
		Overload	1.2 times rated value(continuous)；10times rated value(1 second)
		Consumption	＜0.5VA
Accuracy	voltage,current and power	Class 0.5S(APM800,APM801) Class 0.2S(APM801,APM830)
		Class 0.5S(APM800,APM801) Class 0.2S(APM801,APM830)	Active power
		Reactive power	Class 2
		harmonic	1%(2-42nd),2%(43-63rd)
Switch inputs			Passive contact inputs,built-in power supply
Relay outputs			Contact type:open contact in main part,changeover contact in module Pulse capacity;3A/AC250V 3A/DC30V
Pulse output of energy			Output mode:Optocoupler pulse with open collector Pulse constant:4000(5A),8000(1A)imp/kWh
Analog outputs			DC0-20mA,4-20mA,0-5V,1-5V output,accuracy class 0.5%, Load resistance≤500Ω
Analog inputs			DC0-20mA,4-20mA,0-5V,1-5V output,accuracy class 0.5%
Storage card			Standard capacity:4G,TF card up to 32G capacity
Communication			RS485(Modbus-RTU)
Auxiliary power supply			AC/DC 85-265V or AC/DC 115-415V
Environment	Operating temperature	-20~65℃
		Storing temperature	-20~70℃
		Humidity	≤95%
		Altitude	≤2500m

LCD display

Function

Accuracy
Voltage,current and power:class 0.5s
Active power:class 0.5s
Reactive power: class 2
Harmonic: 1%(2~42nd), 2%(43~63rd)

Frequency
Range:45-65Hz

Auxiliary power supply
AC/DC 85V～265V or AC/DC 115～415V

Pulse output
Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A),8000(1A) imp/kWh；

Consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:power consumption≤15VA

Installation
Panel mounted

Dimension(L*W*H)
Panel size(L×W):96*96mm
Cutout(L×W):92*92mm

Relay
3A/AC250V, 3A/DC30V

Starting current
0.1%

Appearance

Wiring

Typical connection
