100m Transmission Cable Joint Remote Temperature Sensor / Electrical Temperature Sensor

Name: 100m Transmission Cable Joint Remote Temperature Sensor Electrical Temperature Sensor
Brand: Acrel
Price: 42.00 USD

Model Number : ATE

Place of Origin : Jiangsu, China

Brand Name : Acrel

Supply Ability : 100000 Piece/Pieces per Month

Packaging Details : It is packed in a crash bag and then put into a cardboard box.

MOQ : >=1 Pieces

Price : $42.00

Usage : Temperature measurement

Theory : Wireless, Inductance Sensor

Output : Tempearture, Digital Sensor

Description : wireless temperature sensor

Accuracy : ±2℃

Application : Switch cabinet

Transmission distance : 100 meters when empty

Port : shanghai

Contact Now

100m Transmission Cable Joint Remote Temperature Sensor / Electrical Temperature Sensor

Product Description

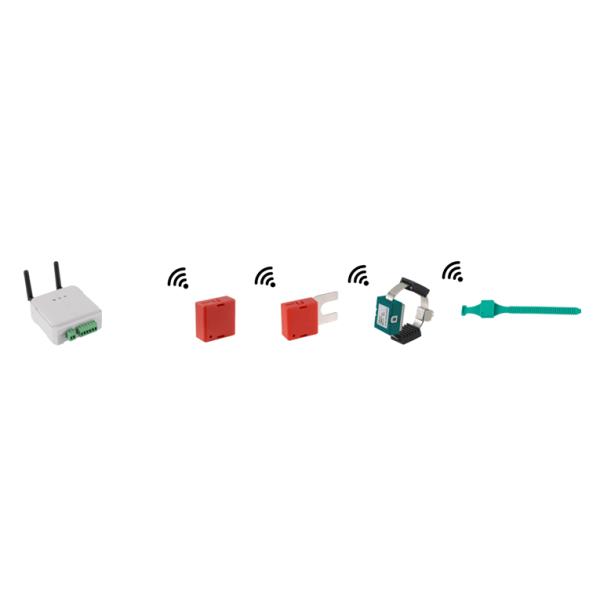

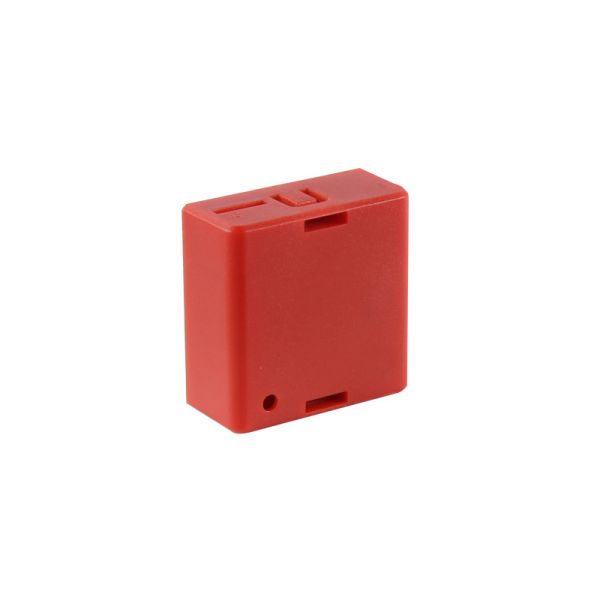

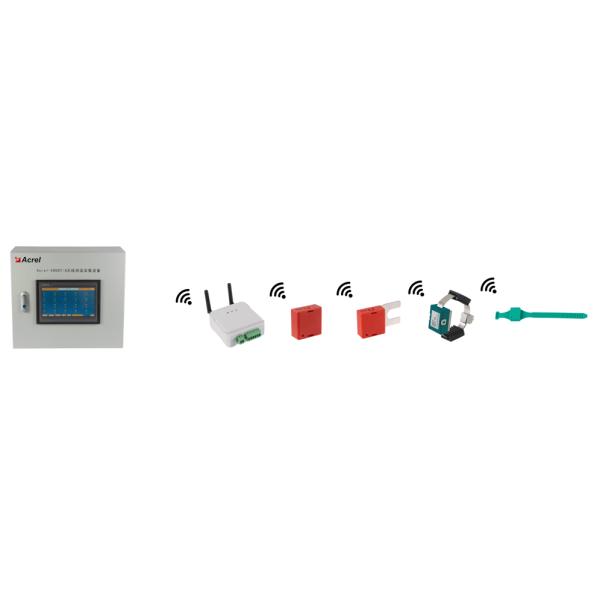

ATE series wireless temperature measuring sensor are suitable for 3-35kV indoor switchgears, including built-in switchgears,handcart switchgears, fixed switchgears and loop-net switchgears.

Dimension and Installation

If you have any questions, please contact us. We will give you the best price and satisfactory service

Function & Parameter

Functions	ATE100	ATE200	ATE300B	ATE300	ATE400
Wireless frequency	2.4GHz			470Mhz
Transmission distance	10m (Open area)			150m (Open area)
Sampling frequency	25s			15s
Transmission frequency	4min			4min	15s
Installation	Bolted	Belt	Bolted	Tied with cable tie
Power supply	Battery			CT-powered, I≥5A
Service life	≥5years			≥10years
Temperature range	-40℃~+125℃			-10℃~+125℃		-50℃~+125℃
Accuracy	±2℃
Sensor probe	Alloy chip fixing			Isolated		Alloy chip fixing
Application	Between bus bar and cable joints	Bus bar, cable joints and moving contact	Bus bar, cable joints and fixed contact
Environment temperature	-40℃~+125℃
Environment humidity	≤95%
Atmospheric pressure	86kPa~106kPa

Details Images

Individual customization service, please click here to contact us

Packing & Delivery

It is packed in a crash bag and then put into a cardboard box.

Company Profile

Jiangsu Acrel Electric Co.,LTD [Stock Code:300286.SZ ] is one of the few leading companies in China who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since June2003, we have always been focused on the research, production and sales of intelligent electric meters. We concentrate on providing products and services to help customers improve electricity and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4KV substation automation system, building mounted photovoltaic(BMPV)system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.

Certifications

FAQ

1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China;

2. How long would your equipment be used?

Generally, more than 10 years.

3. How long could I get my order?
Stock Products: shipping within 5 days.
Customized products: usually 10-15 days. It depends on your design and quantity.

4. What certificate do you have?

We have ISO9001, CE, IEC and so on.

5. Can I get a sample to check the quality?
Samples are no problem. We are glad to offer you some for test.

6. What's your MOQ?

At least one pcs.
